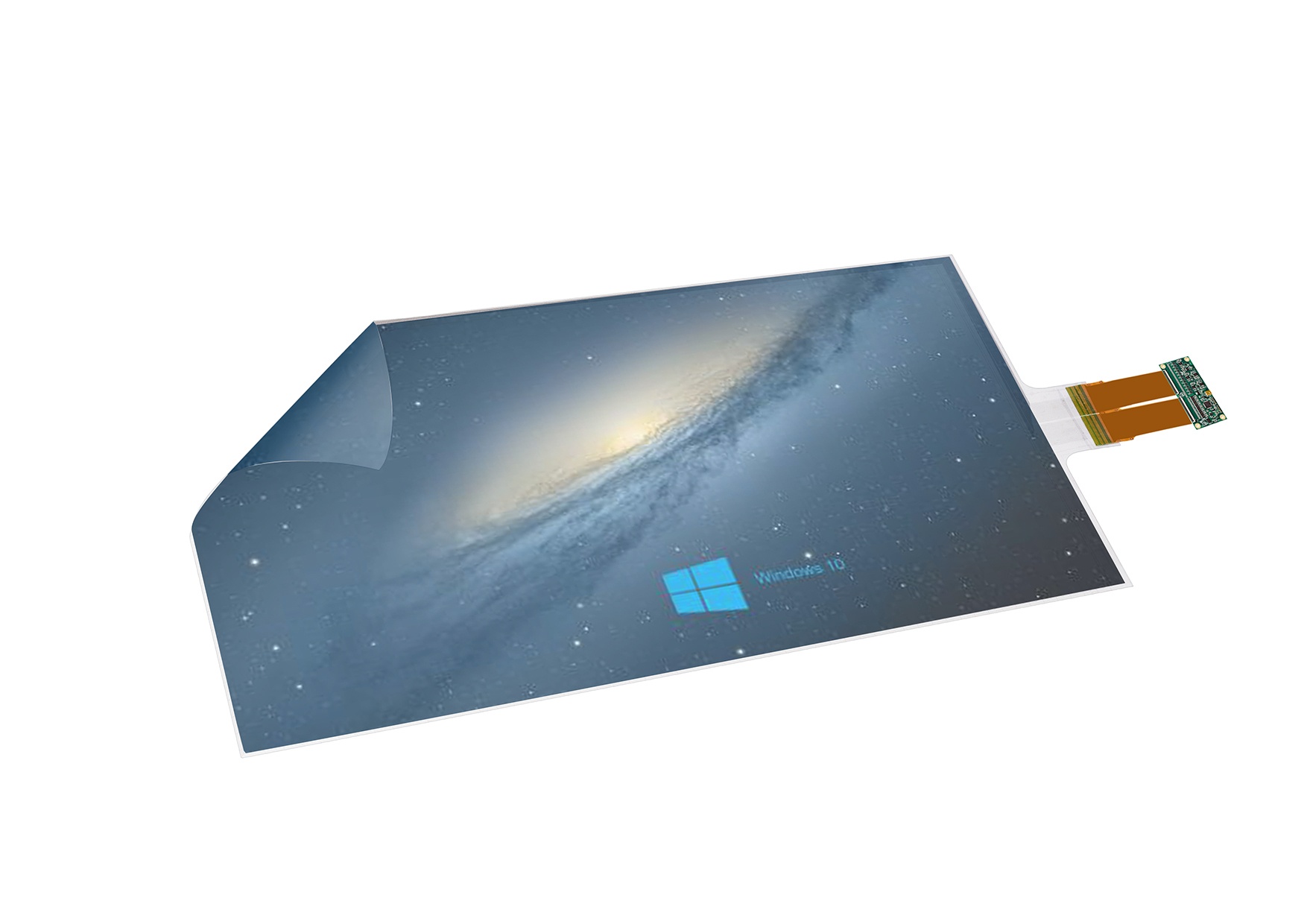

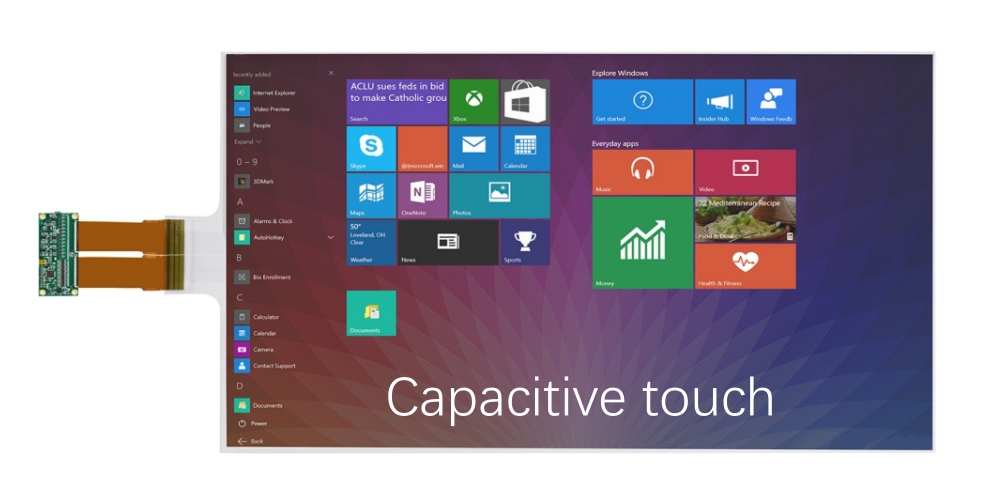

capacitive(PCAP) touch screen
capacitive(PCAP) touch screen
| Parameter type | Product specification |
| Touch size | 10.4"~110" |
| Interpolation resolution | 32767x32767 |
| Touch point number | 2-40 point |
| Support customization | Support |
| Response time | 6-15ms |
| Power supply mode | USB power supply |

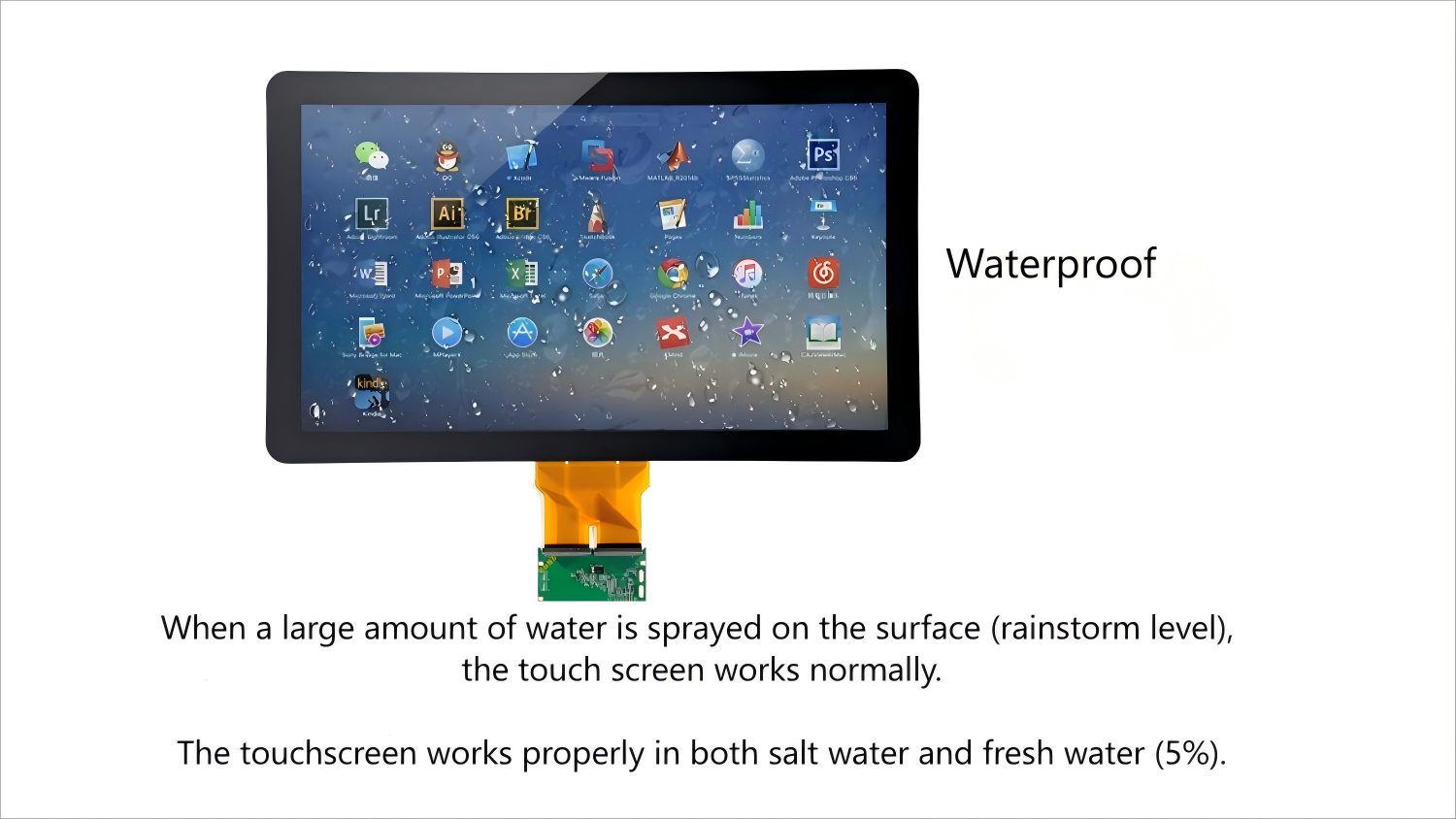

| Supports waterproofing | support |

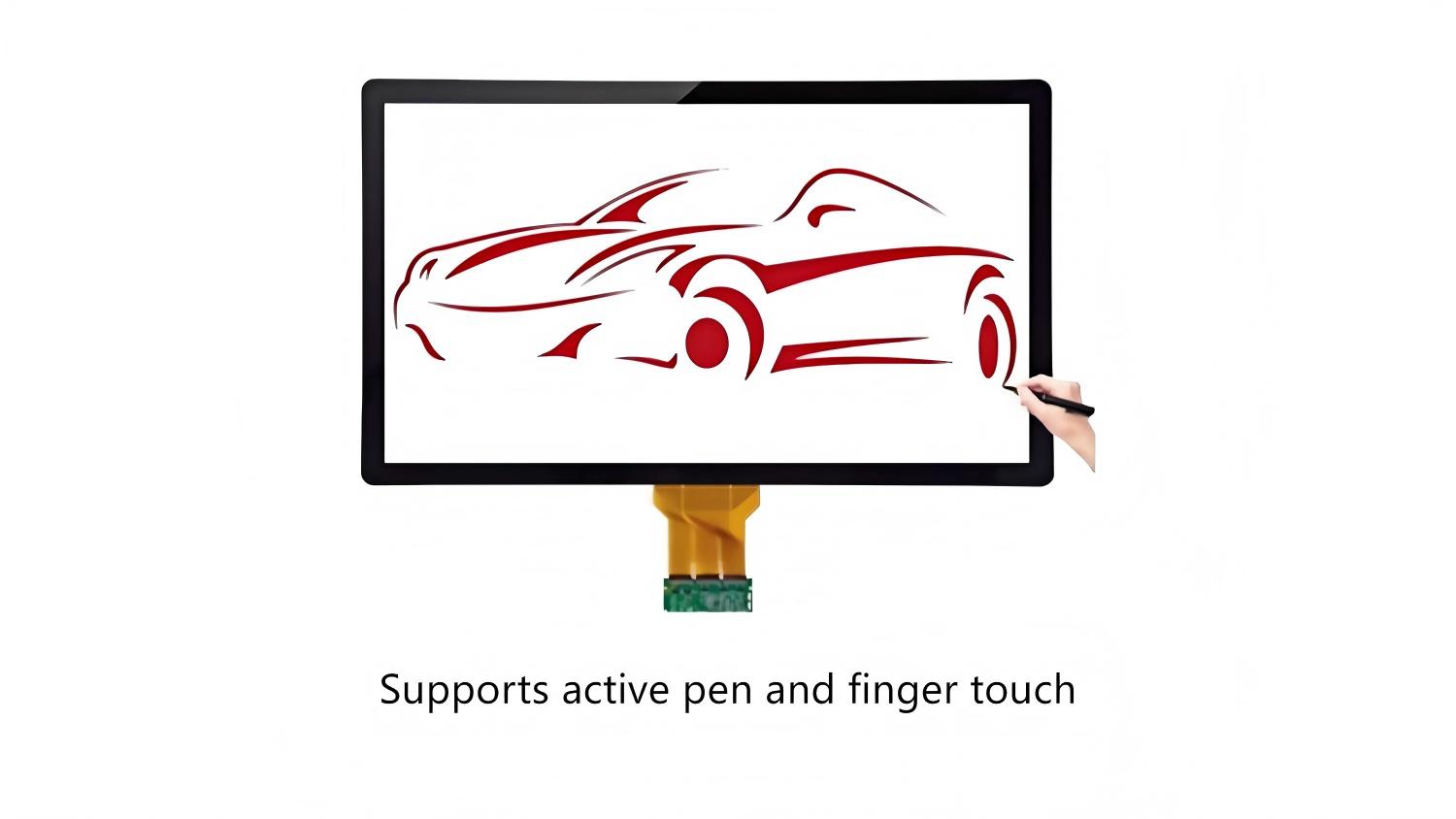

| Input method | finger, special pen touch induction medium |
| Output mode | coordinate value |
| Anti-light performance | All-angle resistance to strong light environments |
| Working voltage | typical value +5V DC, allowable range +4.75V~+5.25V |
| Power waste | <1.5W |
| Sensing distance | ≤10mm |
| Driver | Driver free |
